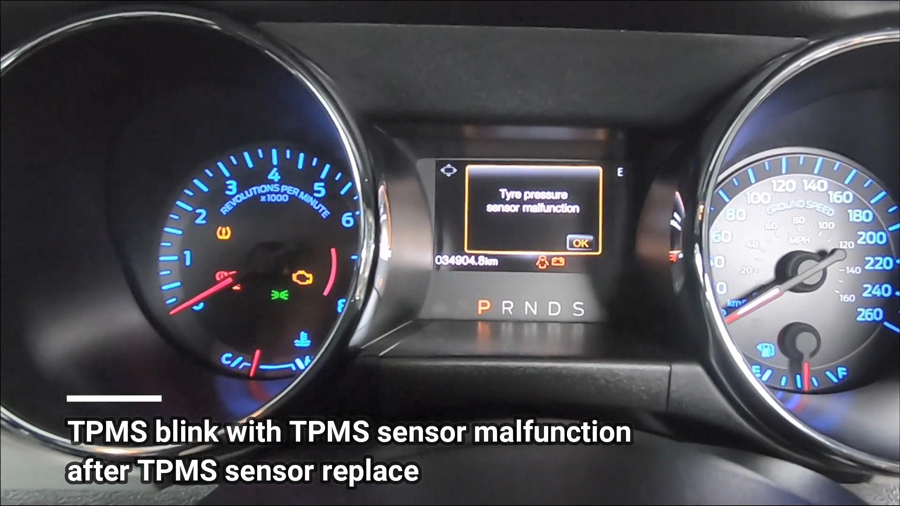

Have one Ford Mustang 2017, the TPMS blink with TPMS sensor malfunction after TPMS sensor replace. And we prepared these tools: a Launch X431 TSGUN TPSM Wand, a Launch X431 Diagnostic Tool (X431 V, X431 V+, X431 PAD V 5, X431 PAD II etc), 4pcs 315MHz + 433MHz TPMS sensors (Shown as below). And X431 TSGUN will communicate with X431 Tool via Bluetooth.
Note: X431 TSGUN can only program the sensors from Launch, for the activation, it can apply to the original tire pressure sensor.
Next we will use Launch X431 Pro full diagnose the car.

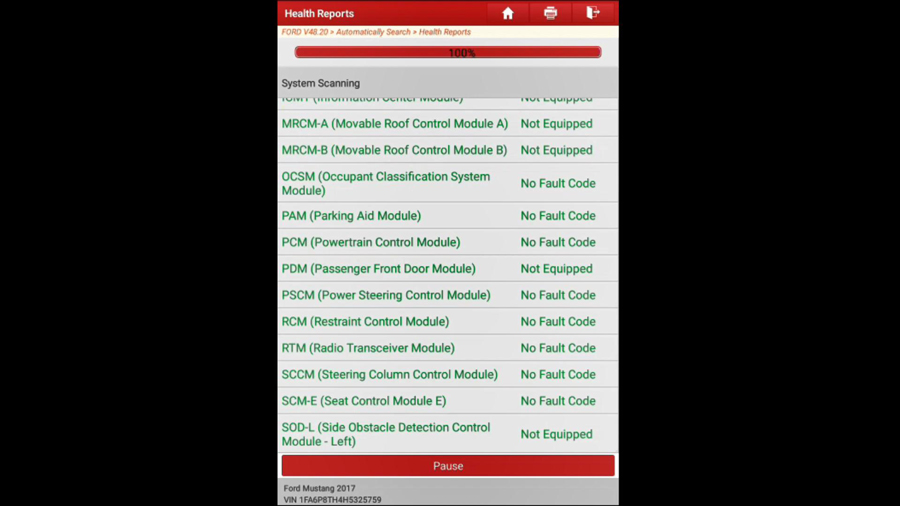

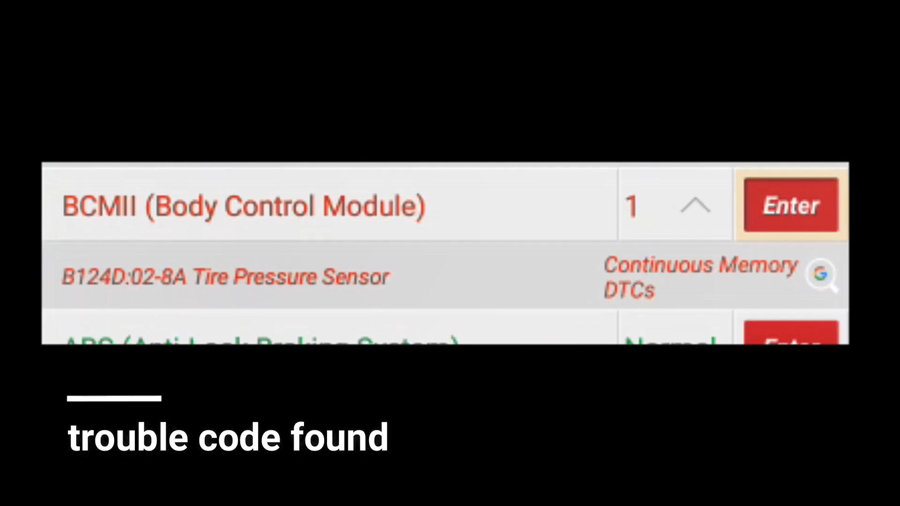

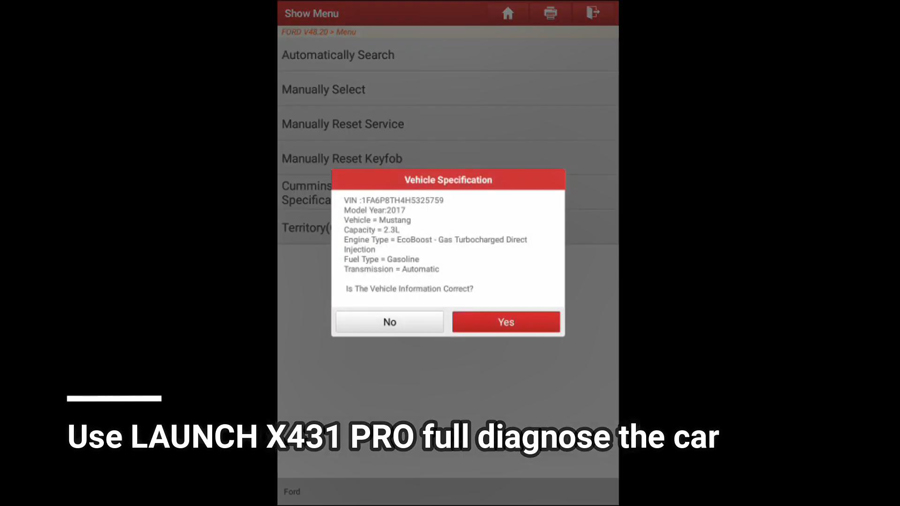

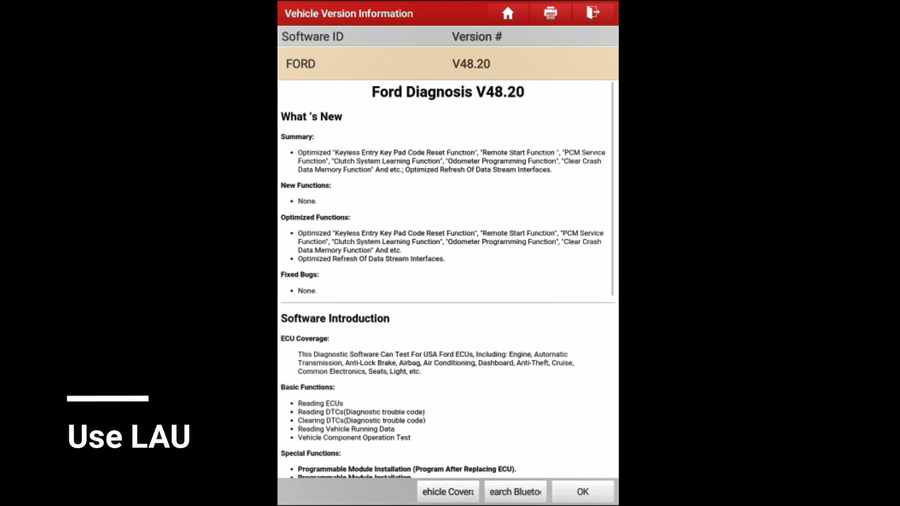

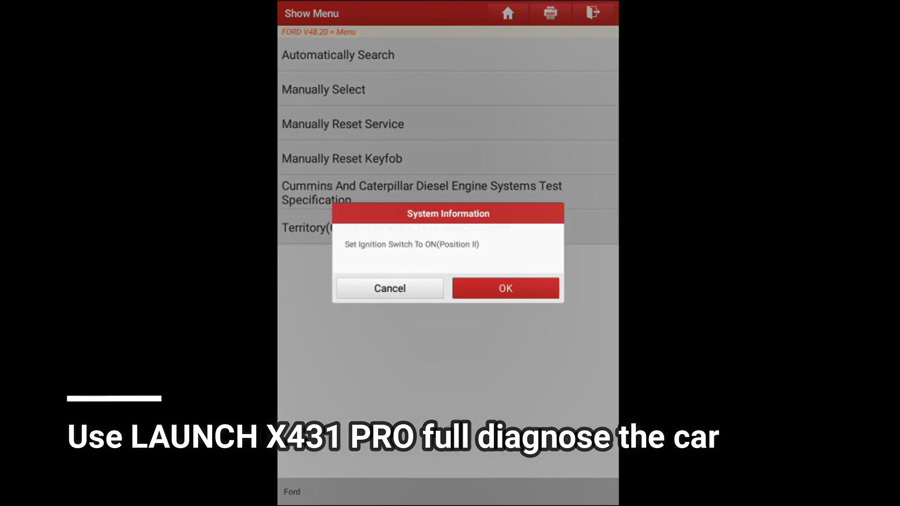

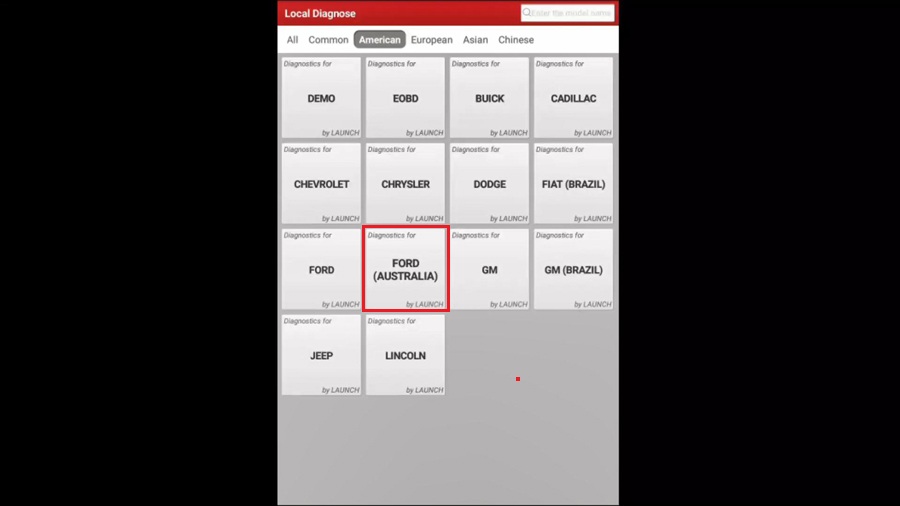

Operation path: Local diagnose -> American -> Ford -> Vehicle version information (i.e Ford V48.20) -> Loading -> Automatically Search -> Set ignition Switch to ON (Position II) -> Vehicle specification -> Health Reports-> Trouble code found.

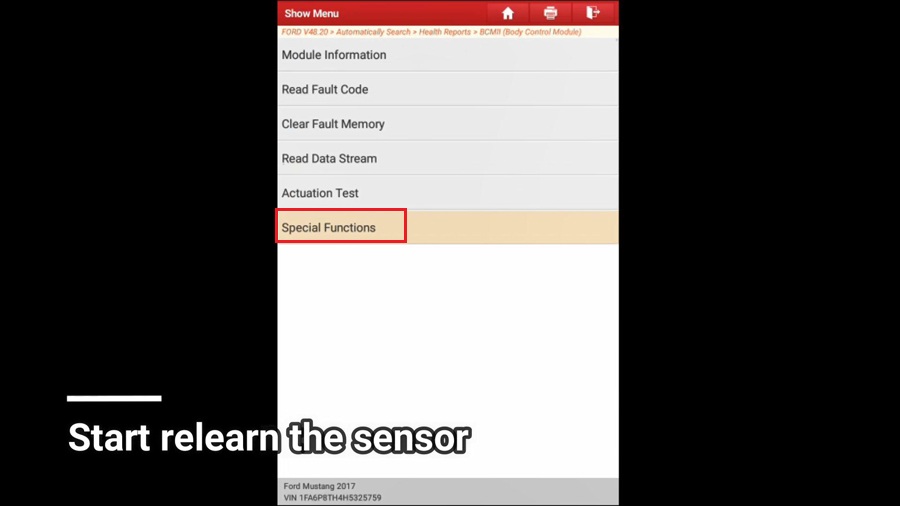

Next, start relearn the sensor.

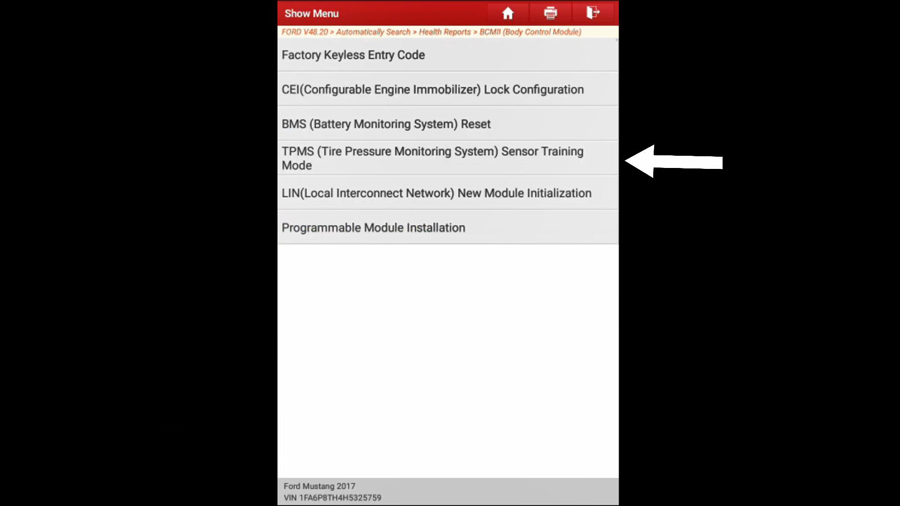

Operation path: Special Functions -> TPMS (Tire Pressure Monitoring System ) sensor training mode.
Next is to follow the pop-up prompts to operate.

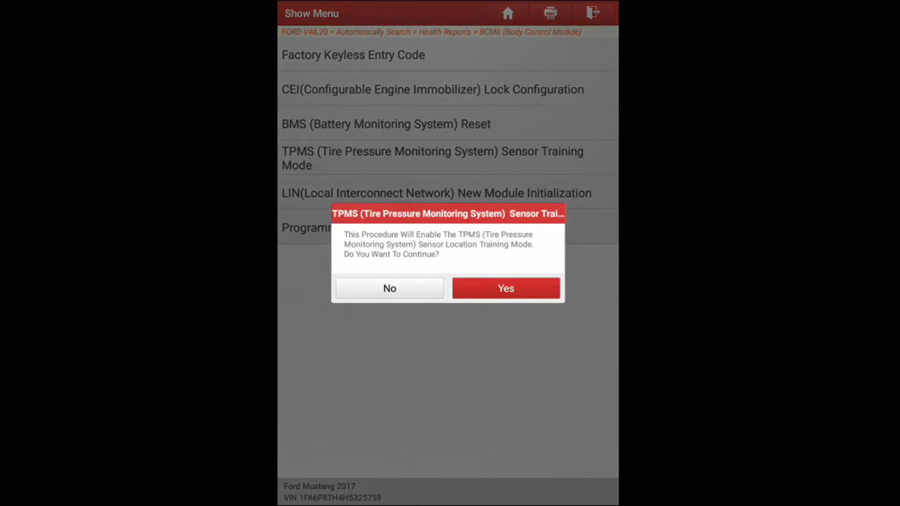

- This procedure will enable the TPMS (Tire Pressure Monitoring System ) Sensor location training mode. Do you want to continue? Select “Yes”.

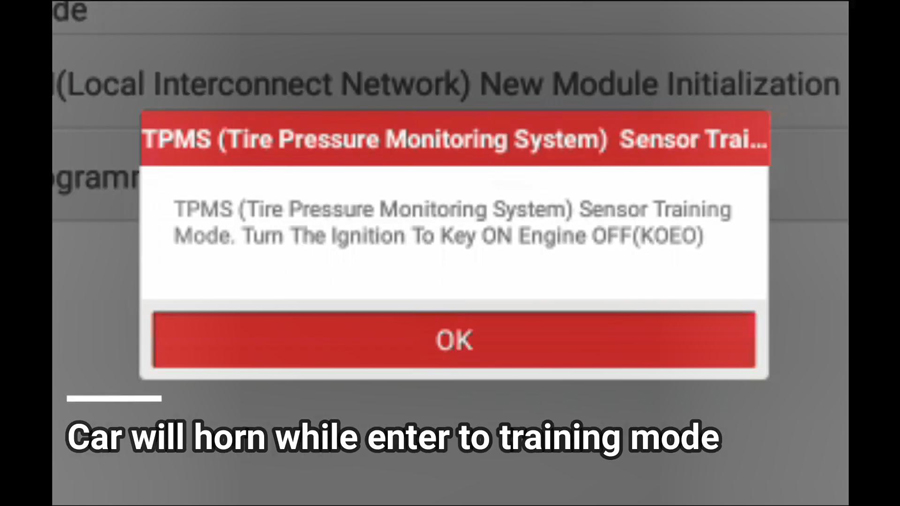

- TPMS (Tire Pressure Monitoring System ) Sensor Training Mode. Turn the ignition to Key ON Engine OFF (KOEO).

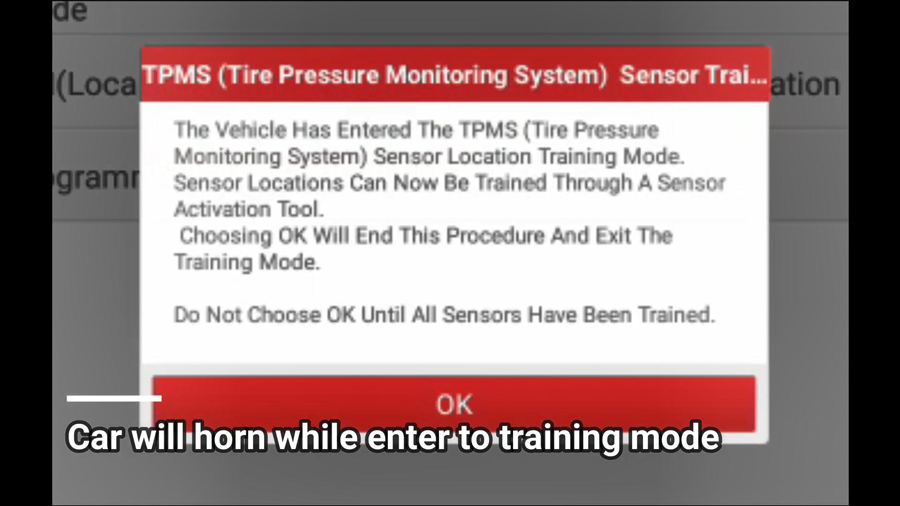

And the car will horn while enter to training mode.
Sensor Locations can now be trained trough a sensor activation tool. Do not choose OK until all sensors have been trained.

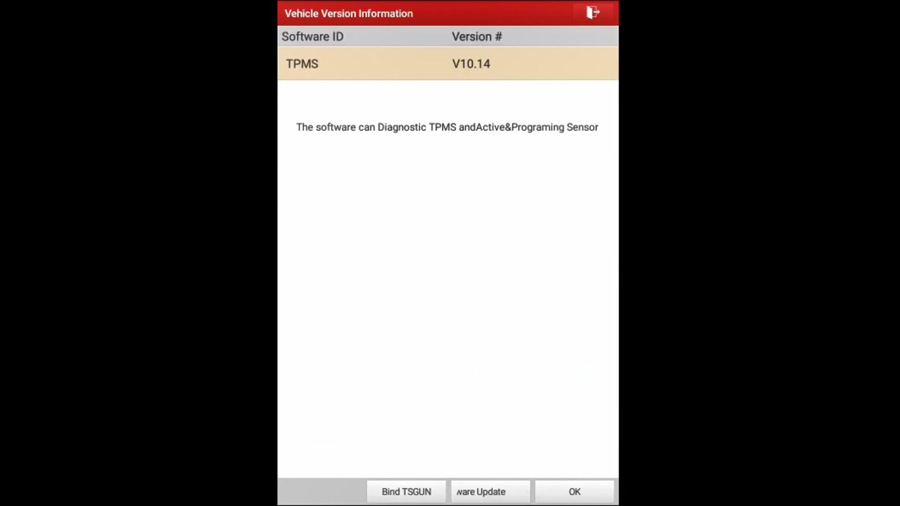

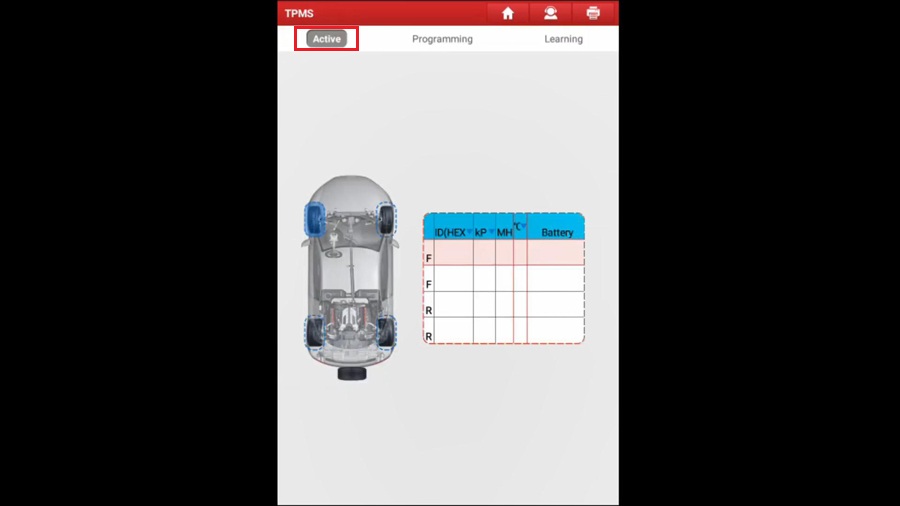

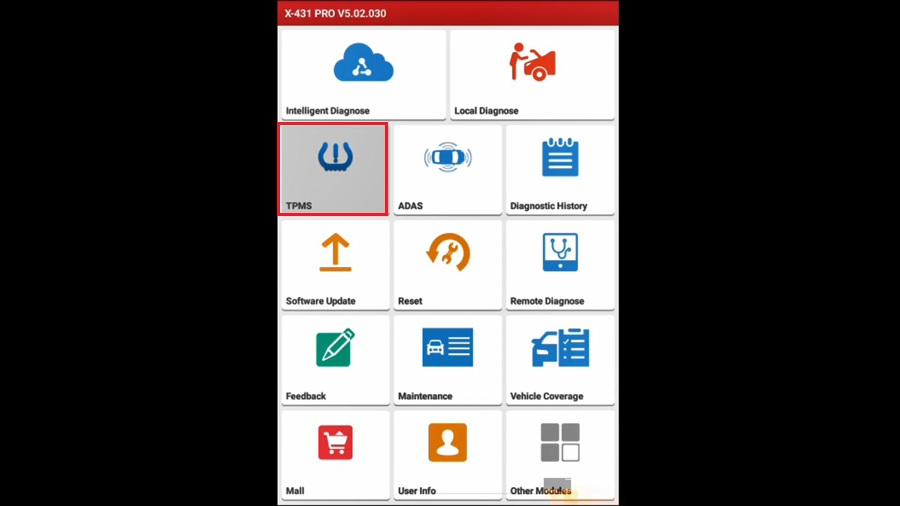

Next, back to X431 Pro home menu and choose “TPMS” to diagnose TPMS, activate and program sensor.

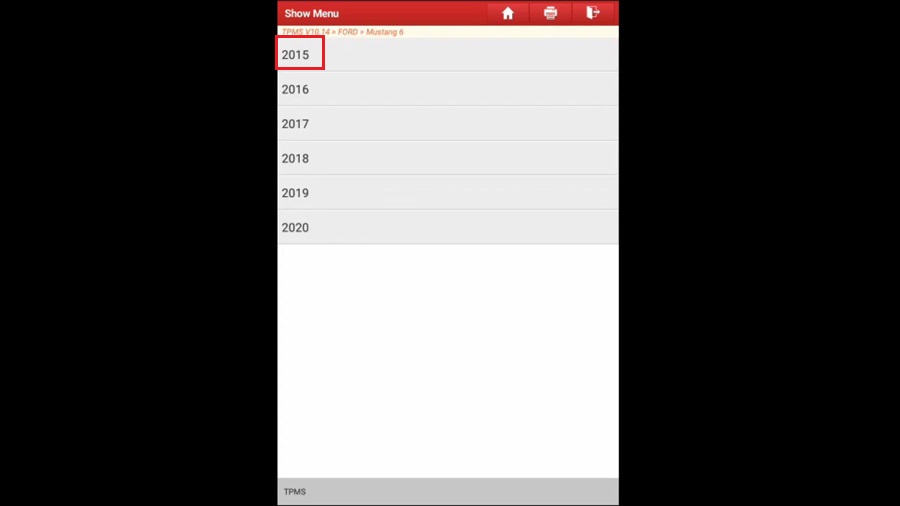

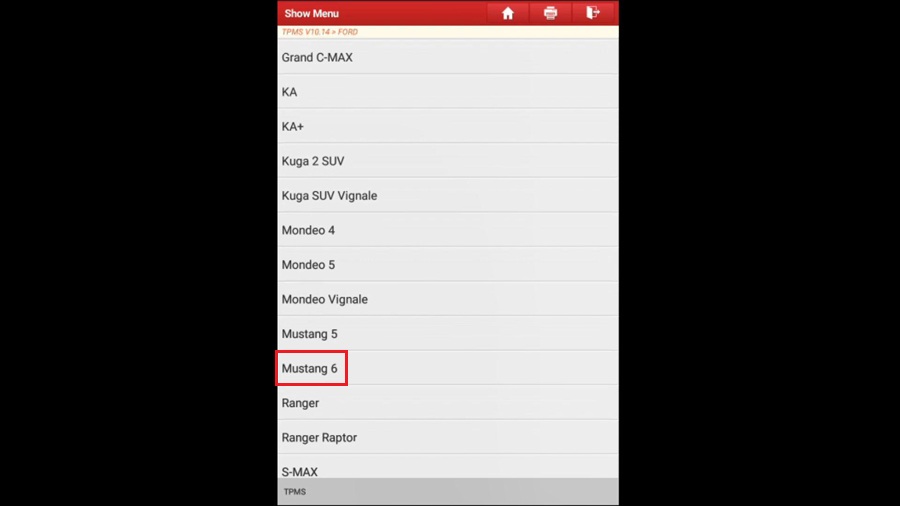

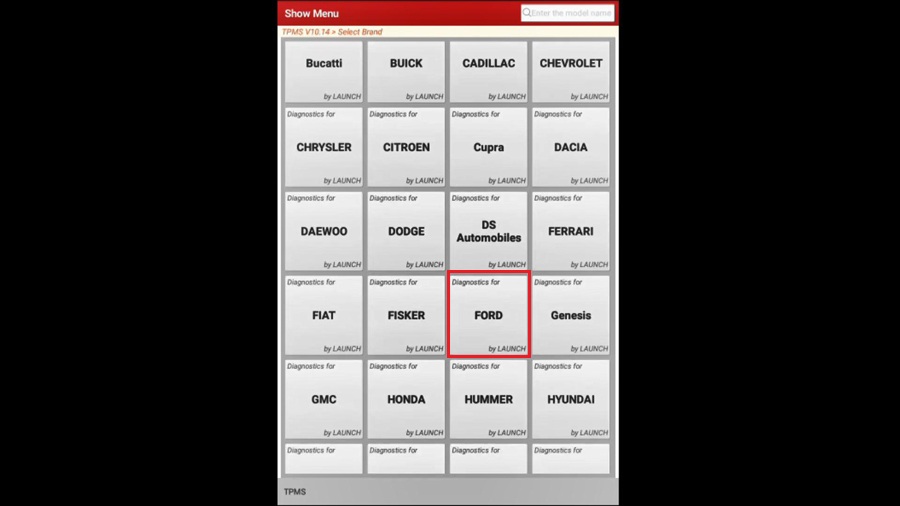

Europe -> select brand “Ford” -> Mustang 6 -> 2015 (up to 2020)

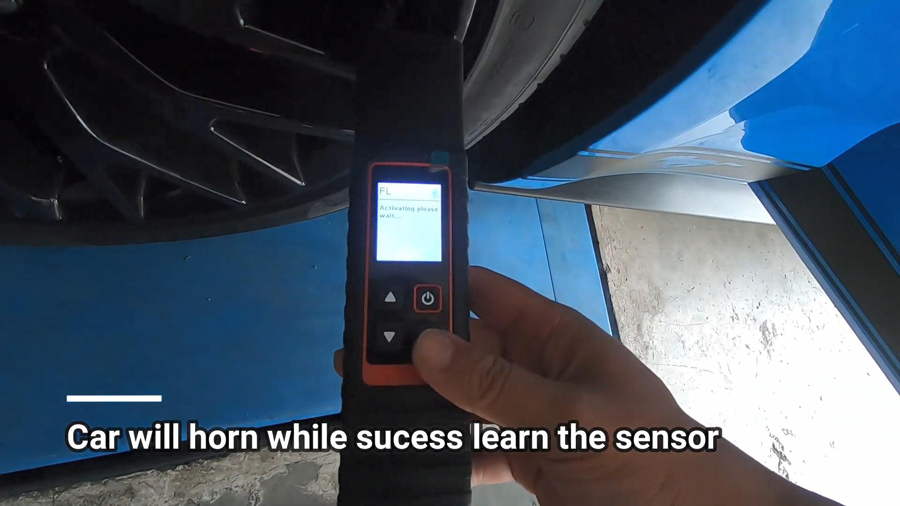

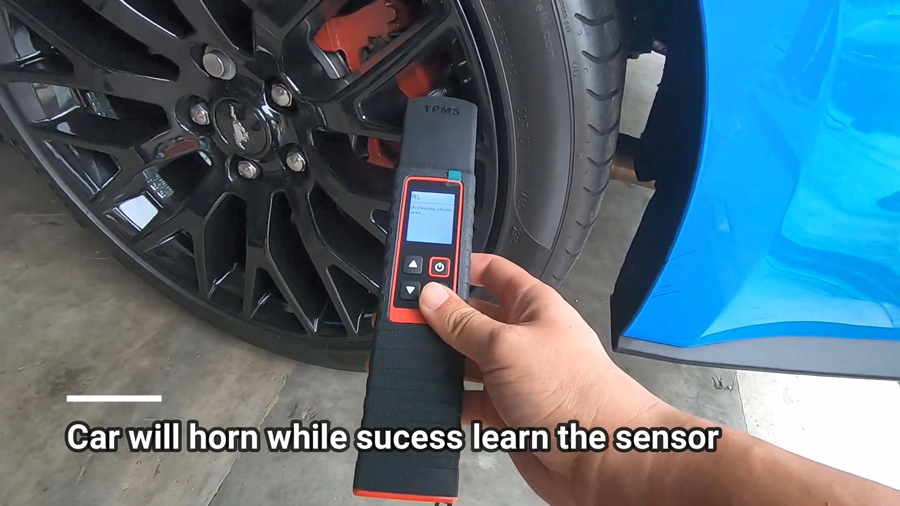

The first tire to be activated is the front left. And the car will horn while succeed learning the sensor.

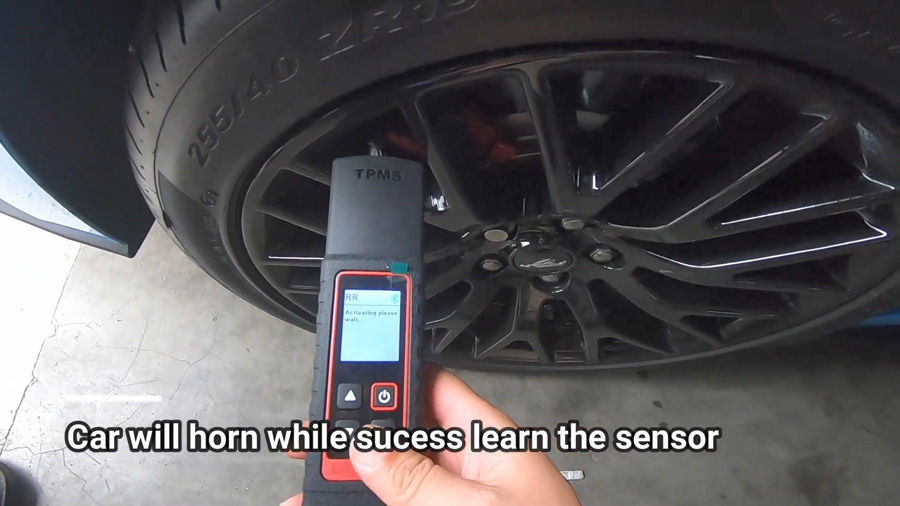

Then to learn the front right sensor.
Then to learn the rear right sensor.
The last one is the Rear left sensor.

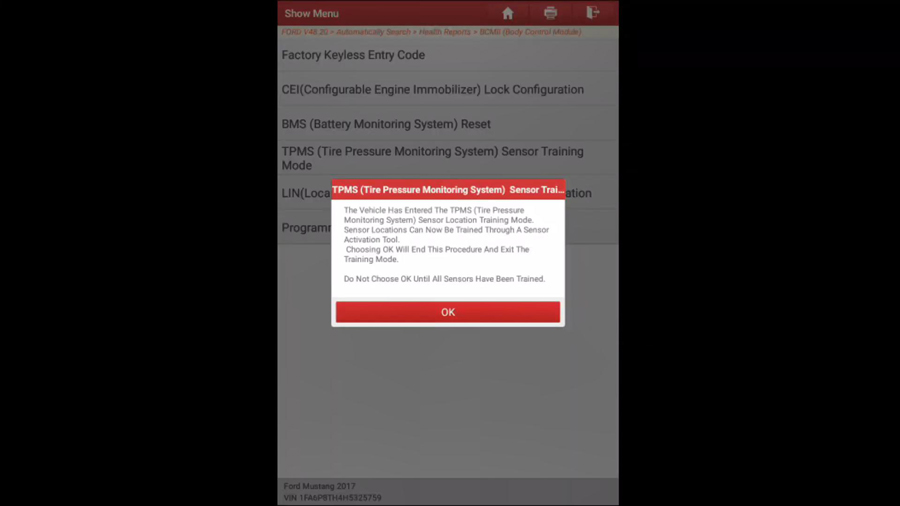

Back to X431 Pro Ford V48.20 ->Automatically search -> Health Reports -> BCM (Body Control Module), tap “Yes” to ensure all sensors have been trained.
And car will horn while exit from training mode.

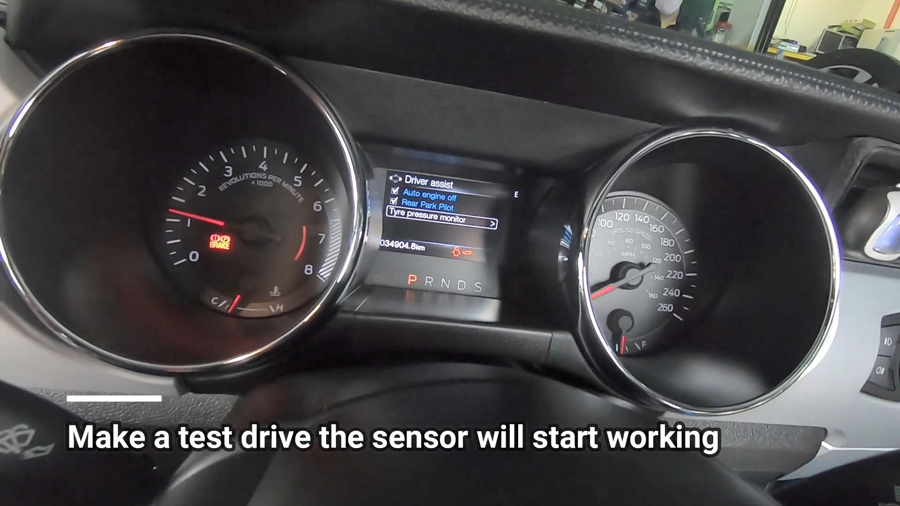

Finally, make a test drive the sensor will start working.
Job is done.
