Launch X431 IMMO Plus/IMMO Elite with IMMO function matched anti-theft smart keys for Peugeot 308/408 all keys lost no issues. Only takes about 2~3 Mins!
Make sure the connection between the X431 IMMO key programmer and vehicle is correct.
Connect the internet and ensure the network connection is normal during the operation process.
Main steps:
Step 1: Read anti-theft key password
Step 2: Match anti-theft key
1.Peugeot 308 AKL Anti-Theft Key Matching with X-431 IMMO Key Programmer:
Step 1: Read anti-theft key password
Select IMMO>> Peugeot V10.22> Peugeot>> Anti-theft Key Password Reading>> All Lost Anti-theft Password Reading>> BSI>> Automatic scan
Note: BSI Control unit voltage too low is likely to cause function failure. Make sure the battery is fully charged.
Press the double-flash switch
[Wiper start], [headlamp ON] are normal when performing this function. If you mind it, plugging out fuse at relative position will prevent it from starting.
Read out the anti-theft key password successfully
Write it download to use later
Step 2: Match anti-theft key
Select “Anti-Theft Key Matching” to read the VIN and car model
Select “Automatic scan” to identify the VIN, mode, car model and system
Select “Programming Of Keys”
To program the keys, you must have:
-Of the confidential code.
-All of the vehicle’s keys.
Pay attention to the warning.
To carry out programming of the keys, electronic keys or hands-free remote controls, enter the confidential code. Pay attention to the warning.
Enter the 4-digit confidential code, enter it again to confirm
Confidential code is correct. The built-in systems interface is ready for programming of the keys or hands-free remote controls.

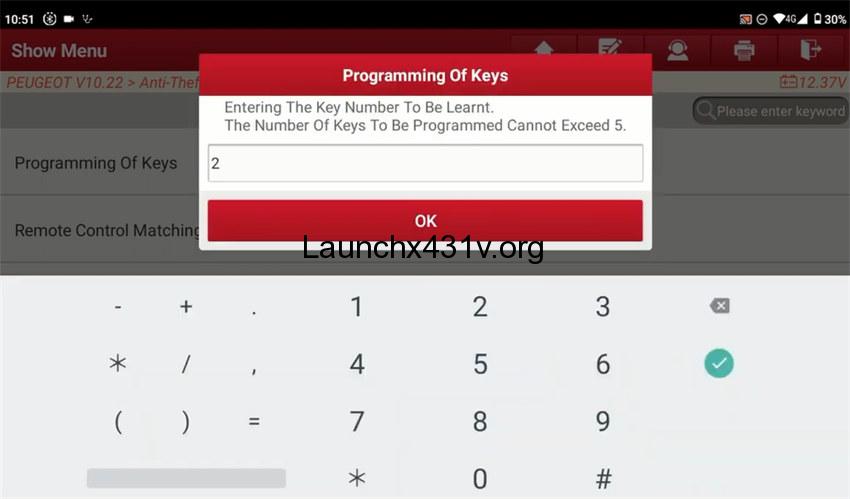

Enter the key number to be learnt (i.e.2)
Switch off the ignition
You have 15 seconds within which to switch on the ignition positive (+APC) using the key to be programmed.
Program the first key successfully
Switch off ignition and remove key
Insert the next key in the ignition, and repeat the above same steps to program
Program the 2nd key successfully, now the numbers of key programmed is 2.
IMPERATIVE:
Before making any attempt to start the engine:
Check that the handbrake is on.
For an automatic gearbox, check that the gear lever is in position ‘p’ (park).
For a manual gearbox, check that the gear lever is in neutral.
2.Peugeot 408 AKL Anti-Theft Key Matching with X431 IMMO Key Programmer:
Step 1: Read anti-theft key password
Select IMMO>> Peugeot V10.22>> Peugeot>> Anti-theft Key Password Reading>> Automatic scan to read the password and write it download to use later
Step 2: Match anti-theft key
Select “Anti-theft Key Matching” to read out the VIN and car model
Select “Automatic scan” to identify the VIN, mode, car model and system
Select “Smart key system”
Press the double-flash switch
Enter the confidential code
The password is correct.
Enter the key number (i.e. 2)
Insert the smart key to be matched into the smart key card slot
Pay attention to the note.
Matching succeed. Take out the smart key, and insert the next smart key.
The 2nd key is matched successfully.
Start the car after each smart card is operated as follow:
Insert the smart card into the slot, turn on the ignition and wait for 3s before turning off it, and take out the smart card and press the lock key for 5 seconds.
Alright! Launch X-431 IMMO Plus/Elite program Peugeot 308/408 all keys lost successfully.
